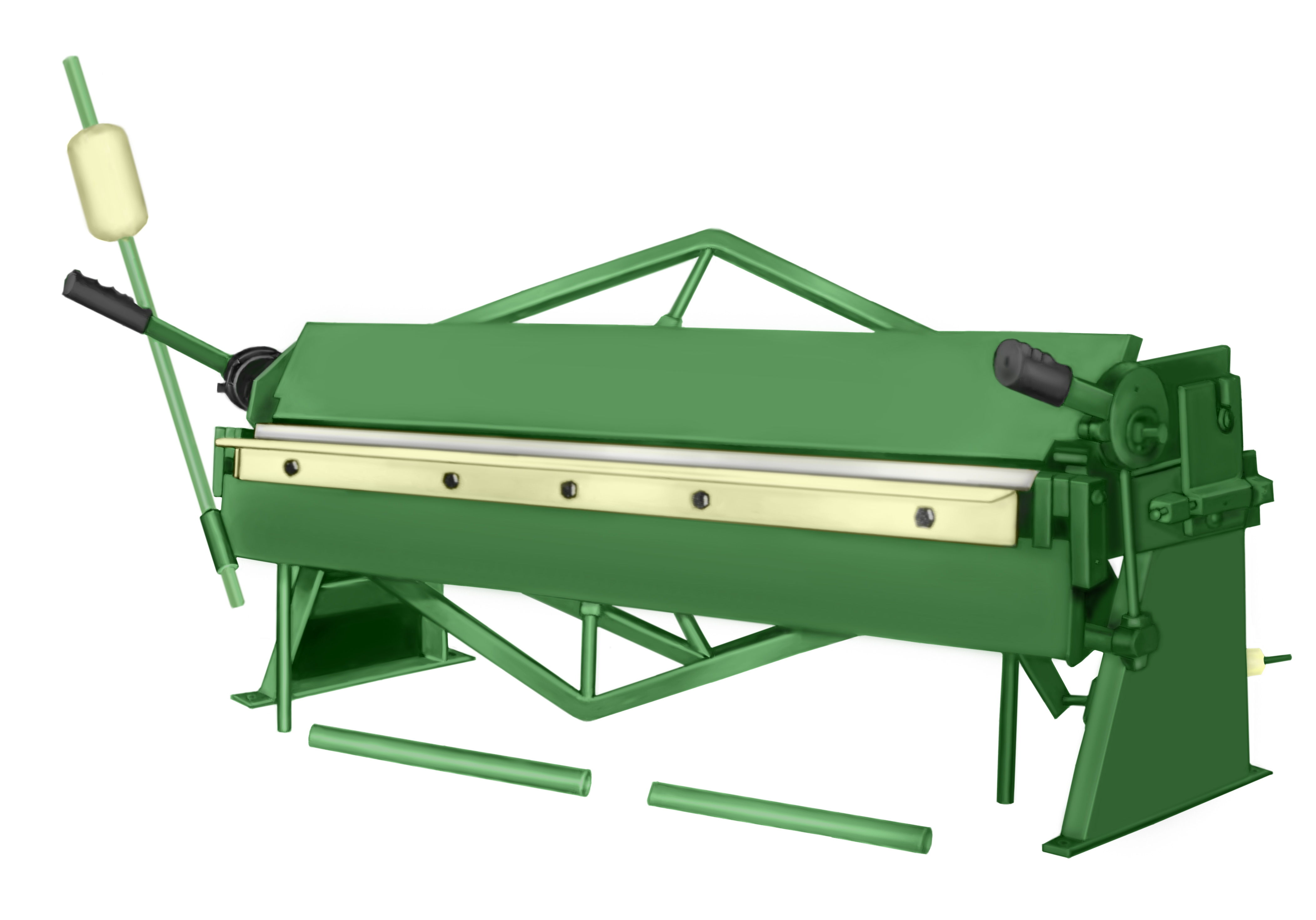

HAND STRAIGHT BRAKE
(BENCH TYPE)

SPECIFICATIONS\ MODEL TSB-416B
Bending length
          mm		 1226
Bending thickness
          mm 		 1.6
Max Lift of beam
          mm 		 32
Beam adjustment
          mm		 16
Size of case        L        mm 1570
                          W       mm 510
                          H        mm 725
Shipping weight           KG 230
CATALOG

FEATURES ：

＊ All-steel welded construction, plastic handgrips, and bronze bushings, which reduce wear.

＊ Heavy truss rods and braces are designed to give superior strength.

＊ Precise bed and beam alignment assures working accuracy.

＊ Adjustable clamping beam for a correct setting according to the sheet thickness.

＊ Angle stopper can adjust the bending angle.

STANDARD EQUIPMENT ：

* One counterweight.

* One of the full-length changeable nose bars is equipped with a machine.

* Operation instruction manual.



OPTIONAL FEATURES

*  Manual back gauge.
